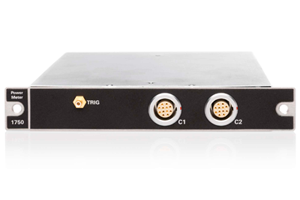

光パワーメーター FTBx-1750

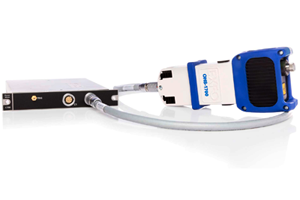

光パワーメーターヘッド OHS-1700

高速、高精度、シンプルなインターフェース。

R & D、製造で高いパフォーマンスを提供します。

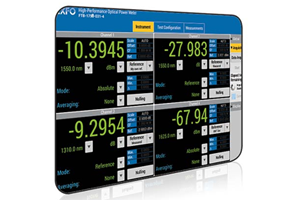

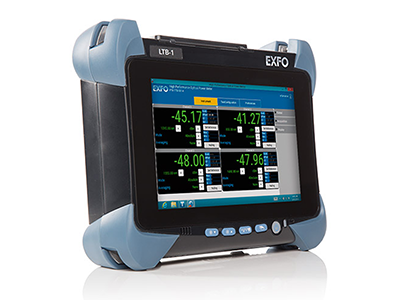

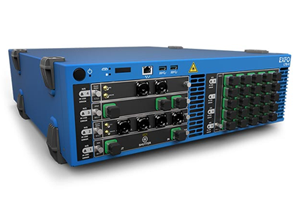

特長

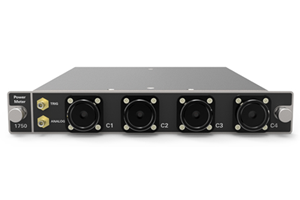

  • 最大4ch / モジュール
  • Min / Max機能搭載 (PDL測定に対応)
  • 測定範囲:8 to -85dBm (FTBx-1750) / 37 to -55dBm (OHS-1700)
  • サンプリングレート:5kHz
  • トリガーインプット / アナログアウトプット構成可能

仕様

SPECIFICATIONS *1 (FTBX-1750/OHS-1700 SERIES)

Optical heads must be operated with the FTBx-1750-OHS.

Model FTBx-1750-031-1/2/4 OHS-1713-UH
Number of detectors 1/2/4 1
Detector type InGaAs InGaAs and integrating cavity
Detector size 1 mm detector 9 mm input aperture
Wavelength range (nm) 800 to 1700 930 to 1660
Power range (dBm) *2, *7 8 to .85 37 to .55
Uncertainty ±(5 % + 2 pW) *5, *7 ±(4 % + 3 nW) *6, *7
Polarization-dependent responsivity (dB) *3 N/A (0 dBm to .50 dBm)
±0.008 typ.
Linearity *4 ±0.015 dB (5 dBm to .55 dBm) ±0.11 dB (35 dBm to 30 dBm), ±0.05 dB (30 dBm to 5 dBm), ±0.015 dB (5 dBm to .22 dBm)
Power resolution (dB) *7 0.001 (8 dBm to .50 dBm) 0.001 (37 dBm to .25 dBm)
Wavelength resolution (nm) 0.01 0.01
Stabilization time (ms) 0.3 0.3
Sampling rate (sample/s/channel) up to 5208Preliminary up to 5208Preliminary
Fiber type (µm)  5/125 to 62.5/125
NA . 5/125 to 62.5/125 0.4 (with BFA-3000)
5/125 to 62.5/125
NA . 5/125 to 62.5/125 0.4 (with BFA-3000)

GENERAL SPECIFICATIONS

FTBx-1750-OHS-1/2
FTBx-1750-031-1/2/4
OHS-1713-UH
Size (H x W x D) *2 25 mm x 159 mm x 185 mm 42 mm x 79 mm x 190 mm
Temperature
 Operating *9
 Storage
0 °C to 40 °C (32 °F to 104 °F)
-40 °C to 70 °C (-40 °F to 158 °F)
0 °C to 40 °C (32 °F to 104 °F)
-40 °C to 70 °C (-40 °F to 158 °F)
Number of ports 1/2/4 1
Relative humidity *10 0 % to 80 % non-condensing 0 % to 80 % non-condensing
Remote control With FTBx-1750: GPIB (IEEE-488.1, IEEE-488.2), Ethernet and RS-232. With FTBx-1750: GPIB (IEEE-488.1, IEEE-488.2), Ethernet and RS-232.
Instrument drivers IVI drivers and SCPI commands. IVI drivers and SCPI commands.
Standard accessories User guide, one fiber-optic adapter per channel, Certificate of Compliance and Certificate of Calibration. User guide, one fiber-optic adapter per channel, Certificate of Compliance and Certificate of Calibration.
  • *1
    At 1550 nm (unless otherwise specified), with an FC angled connector and a warmup time of 20 minutes, followed by an offset nulling.
  • *2
    From 18 °C to 28 °C.
  • *3
    At 23 °C ± 3 °C, constant wavelength (1550 nm), constant power and with an FC non-angled connector.
  • *4
    At constant temperature in the 0 °C to 40 °C range; nulling required.
  • *5
    At 23 °C ± 1 °C with an FOA-322 and an FC non-angled connector, between 1000 nm and 1640 nm. Add 1 % to uncertainty below 1000 nm, and 6 % over 1640 nm.
  • *6
    At 23 °C ± 1 °C with an FOA-322 and an FC angled connector, between 1290 nm and 1340 nm, and between 1420 nm and 1640 nm. Add 2 % to uncertainty below 1000 nm, 1 % between 1370 nm and 1420 nm, and 5 % over 1640 nm. All uncertainties valid on the day of calibration. Wavelength must not be equal to any water absorption line.
  • *7
    Averaging time of 1 s.
  • *8
    For optical power of > 35 dBm, maximum operating temperature is 30 °C. With the FOA-396, maximum operating temperature is 25 °C.
  • *9
    From 0 °C to 40 °C.
