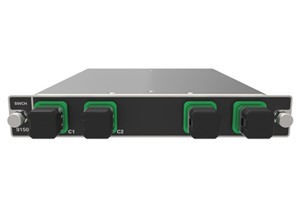

光スイッチ
FTBx-9150
高精度/高再現性、ファイバー to ファイバー光スイッチ

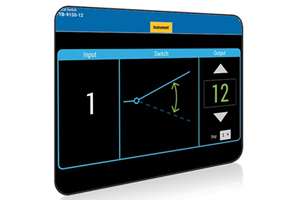

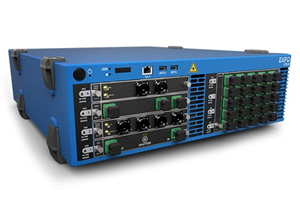

LTB-8 ラックマウント式プラットフォーム
特長
- 1x2 / 1x4 / 1x8 / 1x12 / 1x16 / 1x24 / 1x32 / 2x2 / 2x4
- SM / MM
- 対応コネクターアダプター多数
仕様
SPECIFICATIONS *1
Model：1 x 2
| Mode | Single | Multi |
|---|---|---|
| Insertion loss *3 (dB) typical max. |
0.5 1.5 |
0.5 1.5 |
| Backreflection *4 (dB)：max. | -55 | -24 |
| Repeatability *5 (dB)：max. | ±0.01 | ±0.01 |
| Operating wavelengths (nm) |
1290 to 1650 | 780 to 1350 |
| Polarization-dependent loss f (dB) typical standard max. |
≦0.05 0.10 |
- - |
| Maximum input power (dBm) |
+24 | +24 |
| Switching time (ms) | 25 | 25 |
| Number of channels | 1 x 2 | 1 x 2 |
| Crosstalk (dB) | -80 | -80 |
Model： 1 x 4, 1 x 8, 1 x 12, 1 x 16, 1 x 24, 1 x 32, 2 x 4 b
| Mode | Single | Multi |
|---|---|---|
| Insertion loss c (dB) typical max. |
0.7 1.7 |
0.5 1.7 |
| Backreflection d (dB)：max. | -55 | -24 |
| Repeatability e (dB)：max. | ±0.03 | ±0.03 |
| Operating wavelengths (nm) |
1290 to 1650 | 780 to 1350 |
| Polarization-dependent loss f (dB) typical standard max. |
≦0.05 0.10 |
- - |
| Maximum input power (dBm) |
+24 | +24 |
| Switching time (ms) | 25 per channel + 425 (debouncing) | 25 per channel + 425 (debouncing) |
| Number of channels | 1 x 4, 1 x 8, 1 x 12, 1 x 16, 1 x 24, 1 x 32 | 1 x 4, 1 x 8, 1 x 12, 1 x 16, 1 x 24, 1 x 32 |
| Crosstalk (dB) | -80 | -80 |
Model：2 x 2
| Mode | Single | Multi |
|---|---|---|
| Insertion loss c (dB) typical max. |
0.8 1.5 |
0.5 1.7 |
| Backreflection d (dB)：max. | -55 | -24 |
| Repeatability e (dB)：max. | ±0.01 | ±0.01 |
| Operating wavelengths (nm) |
1290 to 1650 | 780 to 1350 |
| Polarization-dependent loss f (dB) typical standard max. |
≦0.05 0.10 |
- - |
| Maximum input power (dBm) |
+24 | +24 |
| Switching time (ms) | 25 | 25 |
| Number of channels | 2 x 2 | 2 x 2 |
| Crosstalk (dB) | -80 | -80 |
GENERAL SPECIFICATIONS
| Switch | 1x2 | 1x4 | 1x8 | 1x12, 1x16 | 1x24, 1x32 | 2x2 | 2x4 |
|---|---|---|---|---|---|---|---|
| Number of slots | 1 | 2 | 3 | 4 | 4 | 1 | 2 |
| Dimensions | |||||||
| Height (mm) | 25 | 50 | 75 | 100 | 100 | 25 | 50 |
| Width (mm) | 159 | 159 | 159 | 159 | 159 | 159 | 159 |
| Depth (mm) | 185 | 185 | 185 | 185 | 185 | 185 | 185 |
| Switch life | 10 million cycles minimum | 10 million cycles minimum | 10 million cycles minimum | 10 million cycles minimum | 10 million cycles minimum | 10 million cycles minimum | 10 million cycles minimum |
| Temperature operating storage |
10 °C to 40 °C (50 °F to 104 °F) -20 °C to 60 °C (-4 °F to 140 °F) |
10 °C to 40 °C (50 °F to 104 °F) -20 °C to 60 °C (-4 °F to 140 °F) |
10 °C to 40 °C (50 °F to 104 °F) -20 °C to 60 °C (-4 °F to 140 °F) |
10 °C to 40 °C (50 °F to 104 °F) -20 °C to 60 °C (-4 °F to 140 °F) |
10 °C to 40 °C (50 °F to 104 °F) -20 °C to 60 °C (-4 °F to 140 °F) |
10 °C to 40 °C (50 °F to 104 °F) -20 °C to 60 °C (-4 °F to 140 °F) |
10 °C to 40 °C (50 °F to 104 °F) -20 °C to 60 °C (-4 °F to 140 °F) |
| Relative humidity maximum | 80 % non-condensing at 40 °C | 80 % non-condensing at 40 °C | 80 % non-condensing at 40 °C | 80 % non-condensing at 40 °C | 80 % non-condensing at 40 °C | 80 % non-condensing at 40 °C | 80 % non-condensing at 40 °C |
- Instruments Drivers： IVI drivers and SCPI commands
- Remote Control：With LTB-8 and Ethernet
- Standards Accessories：User guide and certificate of compliance
Notes
-
*1Specifications valid at 23 °C ± 5 °C.
-
*2Non-blocking.
-
*3Insertion loss per module, excluding connectors, measured at singlemode wavelengths of 1310 and 1550 nm, and multimode wavelength of 850 nm.
-
*4Backreflection is measured at singlemode wavelengths of 1310 and 1550 nm, with APC connectors, and multimode wavelength of 850 nm.
-
*5Repeatability values are for 100 cycles per switch module at constant temperature with stabilized source/meter at singlemode wavelengths of 1310 and 1550 nm, and multimode wavelengths of 850 and 1300 nm.
-
*6Measured at 1550 nm.
