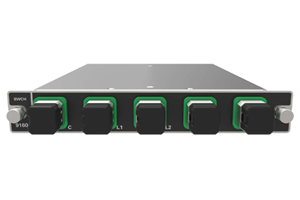

高精度 / 高再現性、ファイバー to ファイバー光スイッチ

特長

  • SM用 1xN~1x32
  • スイッチングタイム:≦30ms
  • ライフタイム:≧1x10⁹
  • 対応コネクターアダプター多数

仕様

SPECIFICATIONS *1

Switch 1 x 2, 1 x 4 1 x 8 1 x 12 1 x 16 1 x 24, 1 x 32
Operating wavelength (nm) 1290 to 1650 1290 to 1650 1290 to 1650 1290 to 1650 1290 to 1650
Insertion loss (dB) at 1310 nm *2, *3 0.9 1.2 1.6 1.8 2.0
Insertion loss (dB) at 1530 nm to 1650 nm *2, *3 0.7 1.0 1.2 1.4 1.5
Repeatability (dB) *4 0.02 0.02 0.02 0.02 0.02
Backreflection (dB) (typical) -50 (-55) -50 (-55) -50 (-55) -50 (-55) -50 (-55)
Crosstalk (dB) (typical) 50 (60) 50 (60) 50 (60) 50 (60) 50 (60)
Polarization-dependent loss (dB) (typical) *5 0.09 (0.06) 0.09 (0.06) 0.09 (0.06) 0.09 (0.06) 0.11 (0.08)
Switching time (ms) 20 30 30 30 30
Fiber type 30 30 30 30 30
Input power (damage threshold) (dBm) 27 27 27 27 27

GENERAL SPECIFICATIONS

Switch 1 x 2, 1 x 4 1 x 8 1 x 12 1 x 16, 1 x 24 1 x 32
Number of slots  1 2 3 4 4
Dimensions
 Height 25 mm 50 mm 75 mm 100 mm 100 mm
 Width 159 mm 159 mm 159 mm 159 mm 159 mm
 Depth  185 mm 185 mm 185 mm 185 mm 185 mm
Switch life 1 billion (109) cycles minimum 1 billion (109) cycles minimum 1 billion (109) cycles minimum 1 billion (109) cycles minimum 1 billion (109) cycles minimum
Temperature
 Operating 0 °C to 40 °C (32 °F to 104 °F) 0 °C to 40 °C (32 °F to 104 °F) 0 °C to 40 °C (32 °F to 104 °F) 0 °C to 40 °C (32 °F to 104 °F) 0 °C to 40 °C (32 °F to 104 °F)
 Storage -40 °C to 70 °C (-40 °F to 158 °F) -40 °C to 70 °C (-40 °F to 158 °F) -40 °C to 70 °C (-40 °F to 158 °F) -40 °C to 70 °C (-40 °F to 158 °F) -40 °C to 70 °C (-40 °F to 158 °F)
Maximum relative humidity 80 % non-condensing at 40 °C 80 % non-condensing at 40 °C 80 % non-condensing at 40 °C 80 % non-condensing at 40 °C 80 % non-condensing at 40 °C

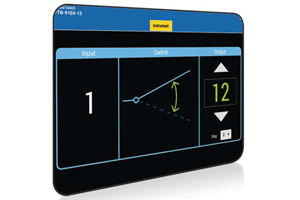

  • Instruments Drivers: IVI drivers and SCPI commands

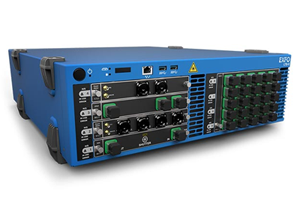

  • Remote Control:With LTB-8 and Ethernet
  • Standards Accessories:User guide and certificate of compliance

Notes

  • *1
    Specifications valid at 23 °C ± 5 °C.
  • *2
    Insertion losss per module, including one connector.
  • *3
    Typical specifications.
  • *4
    Repeatability values are for 100 cycles per switch module at constant temperature with stabilized source/meter.
  • *5
    At 1550 nm.
