USBコントローラー
LUCI-10
- Digital I/O Interface for USB Remote Control of FEMTO Amplifiers
- Supports Opto-Isolation of Amplifier Signal Path from PC USB Port
- Bus-Powered Operation
- System Driver and Application Software Included
- LabVIEW VI’s for Easy Integration in LabVIEW Environment
- Ideal for Remote Control of FEMTO Amplifiers in Automated Systems and Measurement Setups
仕様
| Model | LUCI-10 |
|---|---|
| Bus Interface | USB 2.0 (full-speed) |
| Digital I/O Interface | 16 output lines, 3 opto-isolated input lines |
| Supply | PS USB bus powered |
| Connectors | USB type A and D-Sub, 25 pin, male |
| Case | Zinc die-cast hood, nickel plated, with jack screws, weight 130 g (0.3 lb.) |
| Software, Included on CD | DLL device driver for Microsoft® Windows PC, Graphical user interface (GUI) programs, Sample VI's and FEMTO Library for ise in LabVIEW™ |
| System Requirements | Microsoft® Windows XP SP 2 or higher, Intel Pentium III or equivalent/higher, 512 MB RAM or more, 200 MB of hard disk space, USB 1.1 or 2.0 port |
| Optional Requirements | For development of own application programs an additional development environment like LabVIEW™ Version 8 (or higher) or C/C++ is required. |
-
※製品仕様は改良などにより、予告なしに変更となる場合あります。

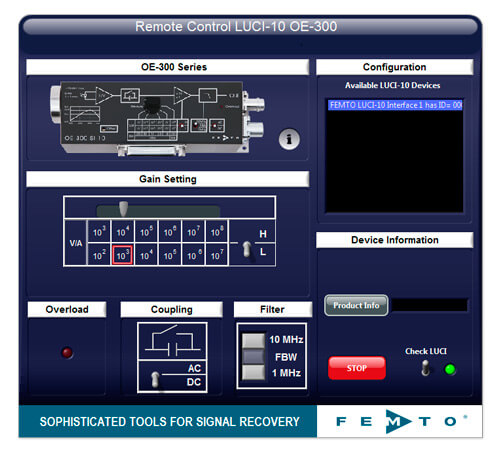

FEMTO Library for Use with LabVIEW and Sample GUI
