ファイバーピグテイル超安定レーザー光源
OZ-1000 / OZ-2000 / OZ-3000 シリーズ

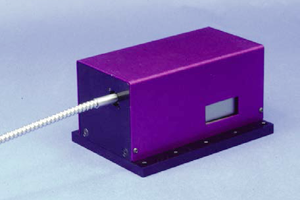

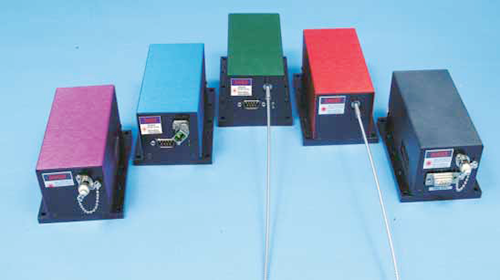

OZ Optics社のOZ-1000、OZ-2000、およびOZ-3000シリーズのファイバーピグテール超安定レーザーモジュールは、375～2000 nmの幅広い波長を提供し、最大300 mWの出力パワーを実現します。

これらのモジュールは優れたパワーおよび波長の安定性を持ち、低RMSノイズで動作します。アナログインターフェースを簡単に設定でき、USBインターフェースなども利用可能です。これらのモジュールはシングルモード、マルチモード、偏波保持ファイバーのバージョンがあり、ファイバーピグテールまたはコネクター受け口付きで提供されます。

また、オプションでコリメーターやフォーカサーを追加することができます。コンパクトなサイズと低コストで、医療画像、DNAシーケンシング、光学部品の製造およびテスト、挿入損失測定や減衰測定、高出力またはリモートファイバー配信システムなどの多様な用途に最適です。

ファイバーピグテイル超安定レーザー光源　OZ-1000/2000/3000 シリーズ　データシート

ご相談・お問合せ

特長
仕様
注文方法
波長帯別詳細仕様
外形寸法図

特長

高性能小型 LD 光源
ファイバーによって伝送させることによって、伝送が楽になりました。
オプションで波長コンバイナーもあります。
ファイバーピグテイル、あるいはレセプタクルが選択可能です。
シングルモード、マルチモード、偏波保存ファイバ出力が可能です。
その他波長も対応　400nm～1625nm
詳細はお問合せください。

仕様

OZ-1000/2000/3000

波長^*1（nm)	375	405	440	473	488	520	532	635	660	685
光ファイバー端光出力 (mW)	0.5 1.0 2.0 3.0	1 10 20 30	5-20	5-30	8-20	5-20	5-20	1 5 10 20 40	10 20 40	10
長時間(8時間) パワー安定性^*3	<1%	<1%	<1%	<1%	<1%	<1%	<1%	<1% (Typical)	<1% (Typical)	<1% (Typical)
短時間(1分間) パワー安定性^*3	<1.5% (Typical)^*6	<1.5% (Typical)^*6	<1.5% (Typical)^*6	<1.5% (Typical)^*6	<1.5% (Typical)^*6	<1.5% (Typical)^*6	<1.5% (Typical)^*6	<1.1% (Typical)	<1.1% (Typical)	<1.1% (Typical)
偏波消光比^*4	>18 dB	>18 dB	>18 dB	>18 dB	>18 dB	>18 dB	>18 dB	>20 dB	>20 dB	>20 dB
波長安定性^*5	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)
RMSノイズ (20Hz～ 2MHz)	< 0.2%	< 0.2%	< 0.2%	< 0.2%	< 0.2%	< 0.2%	N/A	< 0.2%	< 0.2%	< 0.2%
Peak to Peak ノイズ (20Hz～2MHz)	< 0.75%	< 0.75%	< 0.75%	< 0.75%	< 0.75%	< 0.75%	N/A	< 0.75%	< 0.75%	< 0.75%

波長^*1（nm)	780	830	850	980	1060	1310	1490^*2	1550	1625	2000
光ファイバー端光出力 (mW)	5 10 35	1 5 10 20 40 60	1 5 10 60	50 100 300	5 15 50 100 150	1 10 20	1-2	1 10 20	2 5 10	1 2 4
長時間(8時間) パワー安定性^*3	<1% (Typical)	<1% (Typical)	<1% (Typical)	<1% (Typical)	<1% (Typical)	<1% (Typical)	<1% (Typical)	<1% (Typical)	<1% (Typical)	<2%
短時間(1分間) パワー安定性^*3	<1.1% (Typical)	<1.1% (Typical)	<1.1% (Typical)	<1.1% (Typical)	<1.1% (Typical)	<1.1% (Typical)	<1.1% (Typical)	<1.1% (Typical)	<1.1% (Typical)	<0.1%
偏波消光比^*4	>20 dB	>20 dB	>20 dB	>20 dB	>20 dB	>23 dB	>23 dB	>23 dB	>23 dB	>20 dB
波長安定性^*5	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)	± 0.2 nm (Typical)
RMSノイズ (20Hz～ 2MHz)	< 0.2%	< 0.2%	< 0.2%	< 0.2%	< 0.2%	< 0.2%	< 0.2%	< 0.2%	< 0.2%	< 0.2%
Peak to Peak ノイズ (20Hz～2MHz)	< 0.75%	< 0.75%	< 0.75%	< 0.75%	< 0.75%	< 0.75%	< 0.75%	< 0.75%	< 0.75%	< 0.75%

*1

標準の中心波長。±5nm ～ ±20nm LDチップに依存。カスタム仕様は要相談
*2

CWDM用波長　1430, 1450, 1470, 1510, 1530nmも可能
*3

光出力に依存。15分ウォーミングアップ後
*4

偏波保持ファイバー（PMF）のみ
*5

TECコントローラーで温度調整時。モードホップなしの場合。
*6

オプションでさらに小さな値も可能

注文方法

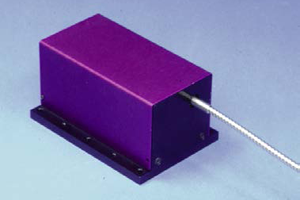

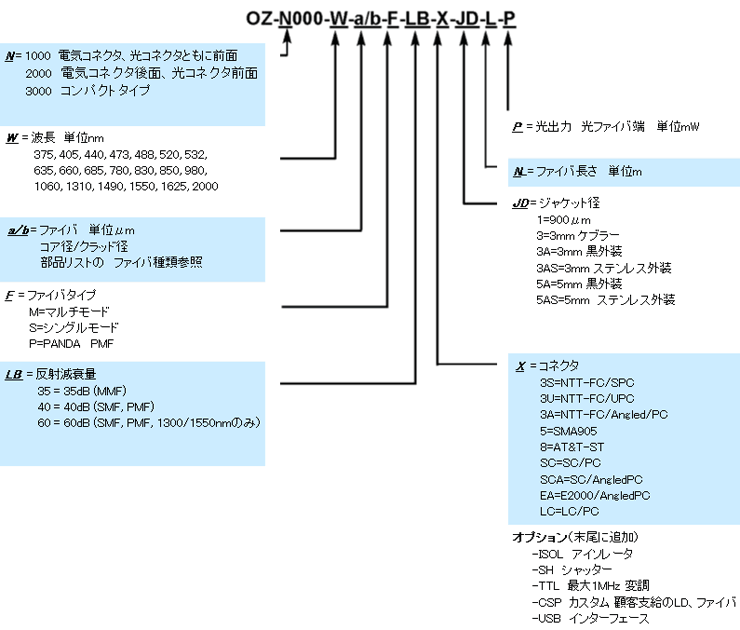

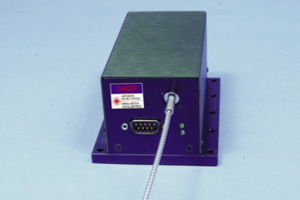

ピグテールタイプ

型番ご指定方法

型番の一例

OZ-2000-405-3/125-P-40-3A-3A-1-10

ピグテールタイプ
波長：405nm
光出力：10mW

ファイバー：3/125µm　PANDA
ファイバー長：1m
ファイバージャケット：3mm黒外装

光コネクター：FC/AngledPC
電気コネクター：後面

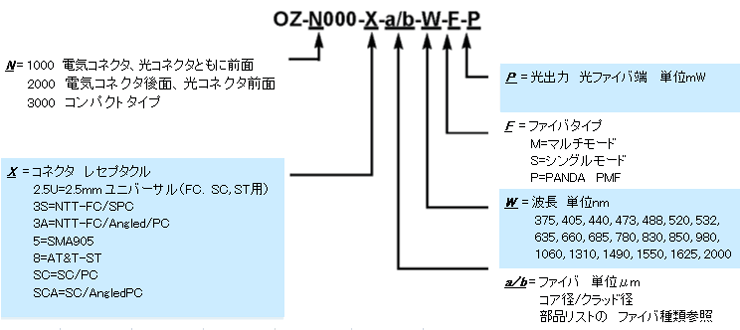

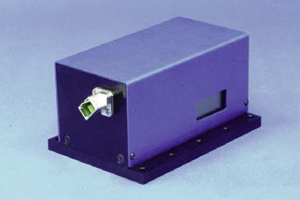

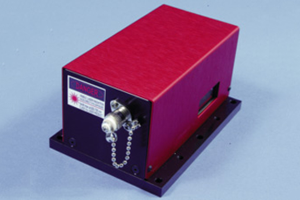

レセプタクルタイプ

型番ご指定方法

375 nm 光源

光学性能

光出力	Up to 7 mW
ファイバータイプ	2/125 µm SM, 2/125 µm PM or MM
長時間パワー安定性^*1	Typically <2%

短時間パワー安定性^*1	Typically <0.5%, (0.1% オプションあり）
偏波消光比^*2	≧18 dB
波長安定性^*3	Typically ± 0.2 nm

*1

Depends on the power level and other options. Refers to typical values achieved over a period of 24 hours for the long-term case and 1 minute for the short-term case after 15 minutes warm up time and at 100% operating output powers.
*2

With polarization maintaining fiber only.
*3

Based on thermal stability achieved with TEC controller and optimum connector termination with low return loss. Assumes absence of mode-hopping.

標準品

Part Number	Description
OZ-2000-375-2/125-S-40-3S-3A-1-3	Pigtail style, self-contained thermally stabilized OEM 375 nm, 3 mW fiber coupled source module. The output fiber is 2/125 µm singlemode, 1 m long, 3 mm OD armour cabled fiber terminated with an Super FC/PC connector. Electrical connections are located in the rear panel.

405 nm 光源

光学性能

光出力	1, 10, 20, 30
ファイバータイプ	3/125 µm SM, 3.5/125 µm PM, or MM
長時間パワー安定性^*1	Typically <2%

短時間パワー安定性^*1	Typically <0.5%, (0.1% オプションあり）
偏波消光比^*2	≧18dB
波長安定性^*3	Typically ± 0.2 nm

*1

Depends on the power level and other options. Refers to typical values achieved over a period of 24 hours for the long-term case and 1 minute for the short-term case after 15 minutes warm up time and at 100% operating output powers.
*2

With polarization maintaining fiber only.
*3

Based on thermal stability achieved with TEC controller and optimum connector terminn. Assumes absence of mode-hopping.

標準品

Part Number	Description
OZ-1000-405-3.5/125-P-40-3A-3-1-1	Pigtail style, self-contained OEM 405 nm, 1 mW fiber coupled source module. The output fiber is 3.5/125 µm PANDA style polarization maintaining fiber, 1 meter long, with 3 mm Kevlar jacketed cable and terminated with an angled FC/APC connector. The output polarization is aligned parallel to the connector key. Electrical connections are on the front panel.
OZ-1000-405-3/125-S-40-3S-3A-1-1	Pigtail style, self-contained thermally stabilized OEM 405 nm, 1 mW fiber coupled source module. The output fiber is 3/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are on the front panel.
OZ-2000-405-3/125-S-40-3S-3A-1-1	Pigtail style, self-contained thermally stabilized OEM 405 nm, 1 mW fiber coupled source module The output fiber is 3/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector.. Electrical connections are located in rear panel.
OZ-1000-405-3/125-S-40-3S-3A-1-10	Pigtail style, self-contained thermally stabilized OEM 405 nm, 8 - 10 mW fiber coupled source module. The output fiber is 3/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are on the front panel.
OZ-2000-405-3/125-S-40-3S-3A-1-10	Pigtail style, self-contained thermally stabilized OEM 405 nm, 8 - 10 mW fiber coupled source module. The output fiber is 3/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are located in rear panel.
OZ-2000-405-3.5/125-P-40-3S-3A-1-30	Pigtail style, self-contained thermally stabilized OEM 405 nm, 30 mW fiber coupled source module. The output fiber is 3.5/125 PANDA style polarization maintaining fiber, 1 m long, with 3 mm armoured cable and terminated with a Super FC/PC connector. Electrical connections are located in rear panel.

440-520 nm 光源

光学性能

光出力	1, 10, 20, 30
ファイバータイプ	3/125 µm SM, 3.5/125 µm PM, or MM
長時間パワー安定性^*1	Typically <2%

短時間パワー安定性^*1	Typically <0.5%, (0.1% オプションあり）
偏波消光比*2	≧18dB
波長安定性^*3	Typically ± 0.2 nm

*1

Depends on the power level and other options. Refers to typical values achieved over a period of 24 hours for the long-term case and 1 minute for the short-term case after 15 minutes warm up time and at 100% operating output powers.
*2

With polarization maintaining fiber only.
*3

Based on thermal stability achieved with TEC controller and optimum connector termination. Assumes absence of mode-hopping.

標準品

Part Number	Description
OZ-1000-405-3.5/125-P-40-3A-3-1-1	Pigtail style, self-contained OEM 405 nm, 1 mW fiber coupled source module. The output fiber is 3.5/125 µm PANDA style polarization maintaining fiber, 1 meter long, with 3 mm Kevlar jacketed cable and terminated with an angled FC/APC connector. The output polarization is aligned parallel to the connector key. Electrical connections are on the front panel.
OZ-1000-405-3/125-S-40-3S-3A-1-1	Pigtail style, self-contained thermally stabilized OEM 405 nm, 1 mW fiber coupled source module. The output fiber is 3/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are on the front panel.
OZ-2000-405-3/125-S-40-3S-3A-1-1	Pigtail style, self-contained thermally stabilized OEM 405 nm, 1 mW fiber coupled source module. The output fiber is 3/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are located in rear panel.
OZ-1000-405-3/125-S-40-3S-3A-1-10	Pigtail style, self-contained thermally stabilized OEM 405 nm, 8 - 10 mW fiber coupled source module. The output fiber is 3/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are on the front panel.
OZ-2000-405-3/125-S-40-3S-3A-1-10	Pigtail style, self-contained thermally stabilized OEM 405 nm, 8 - 10 mW fiber coupled source module. The output fiber is 3/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are located in rear panel.
OZ-2000-405-3.5/125-P-40-3S-3A-1-30	Pigtail style, self-contained thermally stabilized OEM 405 nm, 30 mW fiber coupled source module. The output fiber is 3.5/125 PANDA style polarization maintaining fiber, 1 m long, with 3 mm armoured cable and terminated with a Super FC/PC connector. Electrical connections are located in rear panel.

532^*1 nm 光源

光学性能

光出力	Up to 20 mW @ 440 nm, 488 nm, and 520 nm and up to 30 mW @ 473 nm
ファイバータイプ	3.5/125 µm SM, 3.5/125 µm PM, or MM
長時間パワー安定性^*2	Typically <2%

短時間パワー安定性^*2	Typically <0.5%, (0.1% オプションあり）
偏波消光比^*3	≧18 dB
波長安定性^*4	Typically ± 0.2 nm

*1

Unit is built using a diode pumped solid state laser.
*2

Depends on the power level and other options. Refers to typical values achieved over a period of 24 hours for the long-term case and 1 minute for the short-term case after 15 minutes warm up time and at 100% operating output powers.
*3

With polarization maintaining fiber only.
*4

Based on thermal stability achieved with TEC controller and optimum connector termination. Assumes absence of mode-hopping.

標準品

Part Number	Description
OZ-2000-440-3.5/125-S-40-3S-3A-1-10	Pigtail style, self-contained thermally stabilized OEM 440 nm, 10 mW fiber coupled source module. Theoutput fiber is 3.5/125 µm singlemode fiber, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are located in rear panel.
OZ-2000-473-3.5/125-S-40-3S-3A-1-5	Pigtail style, self-contained thermally stabilized OEM 473 nm, 5 mW fiber coupled source module. The output fiber is 3.5/125 µm singlemode, 1 m long, 3 mm OD armour cabled fiber, terminated with a Super FC/PC connector. Electrical connections are located in rear panel.

635-730 nm 光源

光学性能

光出力	1, 5, 10, 20 at various wavelengths - please consult OZ Optics with your requirements
ファイバータイプ	4/125 µm SM, 4/125 µm PM, or MM
長時間パワー安定性^*1	Typically <2%

短時間パワー安定性^*1	Typically <0.1%
偏波消光比^*2	>20
波長安定性^*3	Typically ± 0.2 nm

*1

Depends on the power level and other options. Refers to typical values achieved over a period of 24 hours for the long-term case and 1 minute for the short-term case after 15 minutes warm up time and at 100% operating output powers.
*2

With polarization maintaining fiber only.
*3

Based on thermal stability achieved with TEC controller and optimum connector termination. Assumes absence of mode-hopping.

標準品

Part Number	Description
OZ-1000-635-4/125-S-40-3S-3A-1-1	Pigtail style, self-contained thermally stabilized OEM 635 nm, 1 mW fiber coupled source module. The output fiber is 4/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are located on the front panel.
OZ-2000-635-4/125-S-40-3S-3A-1-1	Pigtail style, self-contained thermally stabilized OEM 635 nm, 1 mW fiber coupled source module. The output fiber is 4/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are located in rear panel.
OZ-2000-635-4/125-S-40-3S-3A-1-10	Pigtail style, self-contained thermally stabilized OEM 635 nm, 10 mW fiber coupled source module. The output fiber is 4/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. Electrical connections are located in rear panel.
OZ-1000-635-4/125-S-40-3S-3A-1-10	Pigtail style, self-contained thermally stabilized OEM 635 nm, 10 mW fiber coupled source module. The output fiber is 4/125 µm SM, 1 m long, with 3 mm armoured fiber terminated with a super FC/PC connector. lectrical connections are located on the front panel.
OZ-1000-3S-50/125-635-M-25	Receptacle style, self-contained, thermally stabilized, OEM laser diode to fiber coupler module 635 nm with 25 mW output and a 50/125 µm MM fiber terminated with a super FC/PC receptacle. Electrical connections are located on the front panel.
OZ-1000-660-4/125-P-50-3S-5A-0.5-20	Pigtail style, self-contained OEM laser diode to fiber coupler module 660 nm, 18-20 mW output, 0.5 m long, 5 mm armoured 4/125 µm PM fiber terminated with an FC super PC connector. Slow axis of PM fiber aligned with connector keyway. Electrical connections are located on the front panel.
OZ-1000-680-4/125-S-40-3S-3A-1-10	Self-contained OEM Fabry Perot laser diode to fiber coupler module 680 nm, 10-12 mW output, 1 m long, 3 mm armoured 4/125 µm SM fiber terminated with an FC super PC connector. Electrical connections are located on the front panel.

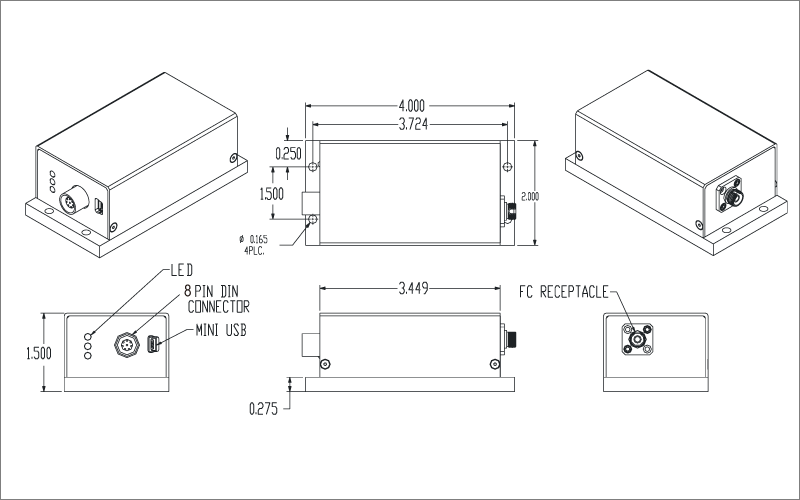

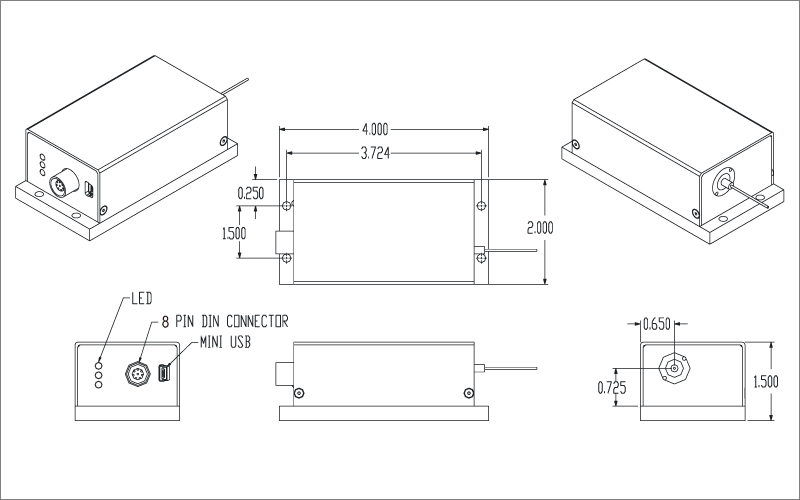

外形寸法図

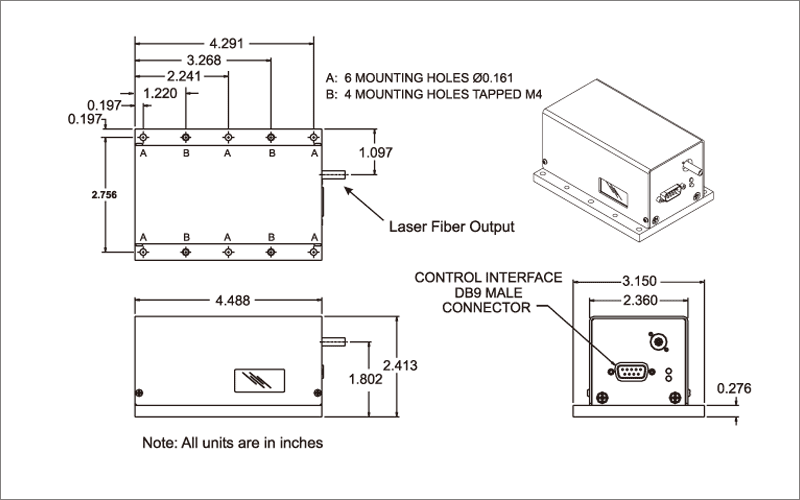

Pigtail style OZ-1000

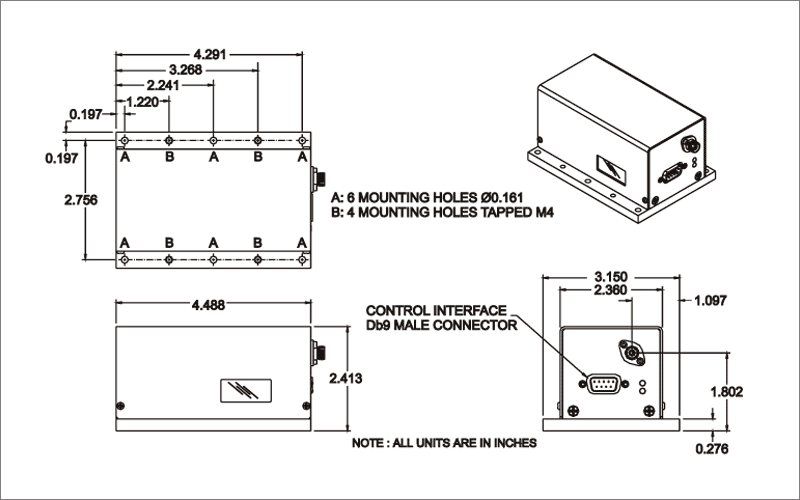

Receptacle style OZ-1000

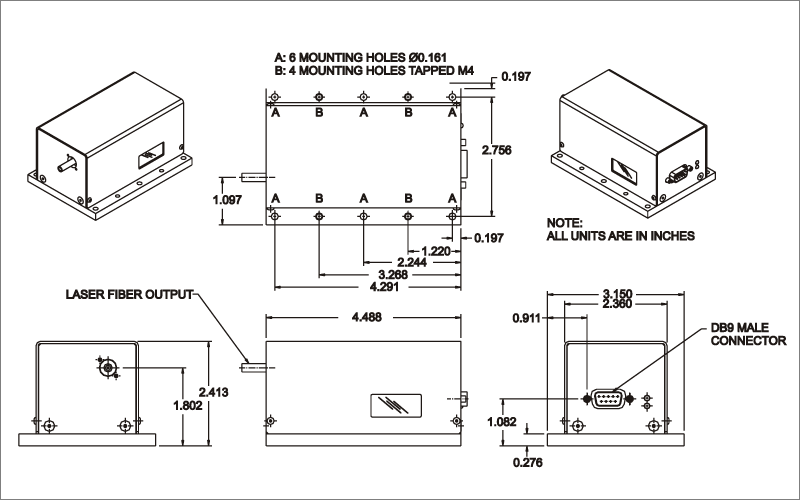

Pigtail style OZ-2000

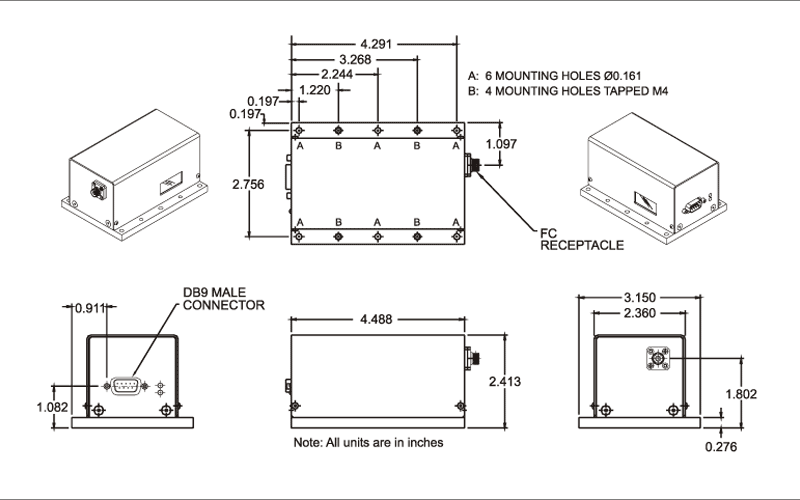

Receptacle style OZ-2000

Pigtail style OZ-3000

Receptacle style OZ-3000
