正のアクロマートレンズ 可視光用
（マウントなし ・ ⌀ 3～31.5 mm）
仕様
| Part No. | Focal Length (mm) |
⌀ (mm) |
Centering Accuracy |
Surface Quality |
dm (mm) |
dm Tolerance (mm) |
dr (mm) |
⌀ Tolerance (mm) |
h' (mm) |
f'546 nm (mm) |
f'633 nm (mm) |
Coating | s546 nm (mm) |
s'546 nm (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G322218000 | 4 | 3 | 3' | 3x0.1 | 2.4 | 0,1 | 1.8 | -0.02 | 0.2 | 4 | 4.01 | ARB2 VIS | 3.58 | 2.83 |
| G322219000 | 5 | 3 | 3' | 3x0.1 | 3.1 | 0,1 | 2.6 | -0.02 | 0.2 | 5 | 5.01 | ARB2 VIS | 4.34 | 3.6 |
| G322250000 | 6 | 3 | 4' | 3x0.1 | 2.7 | 0,1 | 2.2 | -0.08 | 0.1 | 5.95 | 5.96 | ARB2 VIS | 5.51 | 4.68 |
| G322220000 | 8 | 6 | 3' | 3x0.1 | 5 | 0,1 | 3.7 | -0.03 | 0.4 | 8 | 8.01 | ARB2 VIS | 7.19 | 5.48 |
| G322206000 | 10 | 6 | 4' | 3x0.1 | 3 | 0,2 | 2.1 | -0.03 | 0.2 | 10.38 | 10.4 | ARB2 VIS | 10 | 8.88 |
| G322222000 | 13 | 6 | 3' | 3x0.1 | 4.9 | 0,1 | 4.1 | -0.03 | 0.2 | 13 | 13.02 | ARB2 VIS | 12.41 | 10.53 |
| G322223000 | 18 | 6 | 3' | 3x0.1 | 3.7 | 0,1 | 3.2 | -0.03 | 0.1 | 18 | 18.2 | ARB2 VIS | 17.65 | 16.07 |
| G322207000 | 16 | 8 | 4' | 3x0.16 | 3.5 | 0,2 | 2.4 | -0.04 | 0.2 | 16.32 | 16.35 | ARB2 VIS | 16.01 | 14.53 |
| G322356322 | 25 | 8 | 3' | 3x0.1 | 4.2 | 0,2 | 3.4 | 0.3 | 24.97 | 24.99 | ARB2 VIS | 22.88 | ||
| G322357322 | 30 | 8 | 3' | 3x0.1 | 4.2 | 0,2 | 3.5 | 0.2 | 29.95 | 29.97 | ARB2 VIS | 27.86 | ||
| G322358322 | 35 | 8 | 3' | 3x0.1 | 4.2 | 0,2 | 3.6 | 0.2 | 34.96 | 34.99 | ARB2 VIS | 32.88 | ||
| G322359322 | 40 | 8 | 3' | 3x0.1 | 4.2 | 0,2 | 3.7 | 0.15 | 39.96 | 39.99 | ARB2 VIS | 37.88 | ||
| G322362322 | 60 | 8 | 3' | 3x0.1 | 4.4 | 0,2 | 4.1 | 0.1 | 59.94 | 59.97 | ARB2 VIS | 57.8 | ||
| G322363322 | 80 | 8 | 3' | 3x0.1 | 4.4 | 0,2 | 4.2 | 0.08 | 79.97 | 80.01 | ARB2 VIS | 77.84 | ||
| G322364322 | 100 | 8 | 3' | 3x0.1 | 4.5 | 0,2 | 4.3 | 0.06 | 99.9 | 99.95 | ARB2 VIS | 97.73 | ||
| G322367322 | 200 | 8 | 3' | 3x0.1 | 4.7 | 0,2 | 4.6 | 0.03 | 199.73 | 199.48 | ARB2 VIS | 197.49 | ||
| G322368322 | 300 | 8 | 3' | 3x0.1 | 4.7 | 0,2 | 4.6 | 0.02 | 299.86 | 300.03 | ARB2 VIS | 297.61 | ||
| G322201000 | 20 | 10 | 4' | 5x0.16 | 4.1 | 0,2 | 2.8 | -0.04 | 0.3 | 20.6 | 20.62 | ARB2 VIS | 20.24 | 18.44 |
| G322284000 | 25 | 12.5 | 4' | 5x0.16 | 5.5 | 0,2 | 4 | -0.05 | 0.3 | 25.33 | 25.43 | ARB2 VIS | 24.87 | 22.38 |
| G322285000 | 30 | 12.5 | 4' | 5x0.16 | 5 | 0,2 | 3.7 | -0.05 | 0.3 | 30.24 | 30.25 | ARB2 VIS | 29.81 | 27.59 |
| G322286000 | 35 | 12.5 | 4' | 5x0.16 | 5 | 0,2 | 3.9 | -0.05 | 0.2 | 35.04 | 35.04 | ARB2 VIS | 34.62 | 32.39 |
| G322337000 | 40 | 12.5 | 3' | 3x0.16 | 6.3 | 0,1 | 5.1 | -0.05 | 0.4 | 40.09 | 40.13 | ARB2 VIS | 38.82 | 37.24 |
| G322338000 | 45 | 12.5 | 3' | 3x0.16 | 5.5 | 0,1 | 4.4 | -0.05 | 0.3 | 45.02 | 45.06 | ARB2 VIS | 43.96 | 42.51 |
| G322339000 | 50 | 12.5 | 3' | 3x0.16 | 5 | 0,1 | 4.1 | -0.05 | 0.3 | 50.01 | 50.04 | ARB2 VIS | 49.11 | 47.65 |
| G322341000 | 60 | 12.5 | 3' | 3x0.16 | 5.3 | 0,1 | 4.5 | -0.05 | 0.3 | 59.99 | 60.03 | ARB2 VIS | 59.88 | 57.69 |
| G322343000 | 80 | 12.5 | 3' | 3x0.16 | 5.5 | 0,1 | 5.1 | -0.05 | 0.2 | 79.94 | 79.96 | ARB2 VIS | 78.8 | 77.57 |
| G322345000 | 100 | 12.5 | 3' | 3x0.16 | 5.3 | 0,1 | 4.8 | -0.05 | 0.2 | 99.99 | 100.05 | ARB2 VIS | 98.82 | 97.81 |
| G322320322 | 120 | 12.5 | 3' | 3x0.16 | 5.8 | 0,15 | 5.4 | 0.12 | 119.91 | 119.98 | ARB2 VIS | 117.93 | ||
| G322325322 | 150 | 12.5 | 3' | 3x0.16 | 5.8 | 0,15 | 5.5 | 0.1 | 149.9 | 149.99 | ARB2 VIS | 147.42 | ||
| G322327322 | 200 | 12.5 | 3' | 3x0.16 | 5.5 | 0,15 | 5.3 | 0.08 | 199.87 | 199.99 | ARB2 VIS | 197.55 | ||
| G322209000 | 40 | 18 | 3' | 5x0.16 | 7 | 0,2 | 4.5 | -0.05 | 0.6 | 40.16 | 40.2 | ARB2 VIS | 39.67 | 36.04 |
| G322265000 | 50 | 18 | 3' | 5x0.16 | 6.5 | 0,2 | 4.6 | -0.05 | 0.3 | 50.04 | 50.1 | ARB2 VIS | 49.88 | 45.95 |
| G322266000 | 60 | 18 | 3' | 5x0.16 | 6 | 0,2 | 4.4 | -0.05 | 0.2 | 60.11 | 60.17 | ARB2 VIS | 59.99 | 56.33 |
| G322210000 | 80 | 18 | 3' | 5x0.16 | 5.8 | 0,2 | 4.6 | -0.05 | 0.2 | 80.13 | 80.22 | ARB2 VIS | 79.88 | 76.62 |
| G322236000 | 100 | 18 | 3' | 5x0.16 | 5.8 | 0,2 | 4.8 | -0.05 | 0.1 | 100.11 | 100.18 | ARB2 VIS | 100.02 | 96.43 |
| G322331322 | 150 | 18 | 3' | 3x0.1 | 6.5 | 0,2 | 5.9 | 0.18 | 149.83 | 149.92 | ARB2 VIS | 146.94 | ||
| G322332322 | 200 | 18 | 3' | 3x0.1 | 6.5 | 0,2 | 6.1 | 0.15 | 199.82 | 199.93 | ARB2 VIS | 197.07 | ||
| G322321000 | 50 | 22.4 | 3' | 3x0.16 | 7.5 | 0,2 | 5.2 | -0.06 | 0.4 | 50.04 | 50.08 | ARB2 VIS | 49.89 | 45.76 |
| G322322000 | 60 | 22.4 | 3' | 3x0.16 | 7 | 0,2 | 5.1 | -0.06 | 0.4 | 60.47 | 60.51 | ARB2 VIS | 60.04 | 56.74 |
| G322323000 | 80 | 22.4 | 3' | 3x0.16 | 7 | 0,2 | 5.1 | -0.06 | 0.6 | 80.34 | 80.4 | ARB2 VIS | 79.07 | 77.05 |
| G322324000 | 100 | 22.4 | 3' | 3x0.16 | 9 | 0,1 | 7.5 | -0.06 | 0.5 | 100.16 | 100.23 | ARB2 VIS | 98.59 | 95.89 |
| G322326000 | 140 | 22.4 | 3' | 3x0.16 | 8 | 0,1 | 6.9 | -0.06 | 0.4 | 140.07 | 140.15 | ARB2 VIS | 138.74 | 136.2 |
| G322333322 | 160 | 22.4 | 3' | 3x0.16 | 7 | 0,1 | 6.5 | 0.3 | 159.8 | 159.9 | ARB2 VIS | 156.6 | ||
| G322328000 | 200 | 22.4 | 3' | 3x0.16 | 6 | 0,1 | 5.2 | -0.06 | 0.2 | 200.26 | 200.38 | ARB2 VIS | 199.31 | 197.38 |
| G322329000 | 500 | 22.4 | 3' | 3x0.16 | 6 | 0,1 | 5.7 | -0.06 | 0.1 | 499.43 | 499.71 | ARB2 VIS | 499.05 | 495.99 |
| G322306322 | 60 | 25.4 | 3' | 3x0.16 | 8.9 | 0,2 | 6.2 | -0.06 | 0.7 | 60.1 | 60.17 | ARB2 VIS | 59.26 | 55.47 |
| G322307322 | 80 | 25.4 | 3' | 3x0.16 | 7 | 0,2 | 4.6 | -0.06 | 0.8 | 80.34 | 80.4 | ARB2 VIS | 79.07 | 77.05 |
| G322308322 | 100 | 25.4 | 3' | 3x0.16 | 9 | 0,2 | 7.1 | -0.06 | 0.6 | 100.16 | 100.23 | ARB2 VIS | 98.59 | 95.89 |
| G322309322 | 120 | 25.4 | 3' | 3x0.16 | 7 | 0,2 | 5.4 | -0.06 | 0.5 | 120.1 | 120.18 | ARB2 VIS | 118.91 | 116.77 |
| G322351000 | 140 | 25.4 | 3' | 3x0.16 | 8 | 0,2 | 6.6 | -0.06 | 0.5 | 140.07 | 140.15 | ARB2 VIS | 138.74 | 136.2 |
| G322352000 | 160 | 25.4 | 3' | 3x0.16 | 8.6 | 0,2 | 7.4 | -0.06 | 0.4 | 160 | 160.08 | ARB2 VIS | 158.47 | 155.95 |
| G322353000 | 200 | 25.4 | 3' | 3x0.16 | 6 | 0,2 | 5 | -0.06 | 0.3 | 200.26 | 200.38 | ARB2 VIS | 199.31 | 197.38 |
| G322336322 | 300 | 25.4 | 3' | 3x0.16 | 7 | 0,1 | 6.4 | 0.2 | 299.66 | 299.83 | ARB2 VIS | 296.5 | ||
| G322340322 | 400 | 25.4 | 3' | 3x0.16 | 7 | 0,1 | 6.5 | 0.15 | 399.61 | 399.84 | ARB2 VIS | 396.44 | ||
| G322355000 | 500 | 25.4 | 3' | 3x0.16 | 6 | 0,2 | 5.5 | -0.06 | 0.1 | 499.43 | 499.71 | ARB2 VIS | 499.05 | 495.99 |
| G322287322 | 80 | 31.5 | 3' | 5x0.25 | 10.5 | 0,2 | 6.7 | -0.07 | 1.2 | 80.1 | 80.18 | ARB2 VIS | 78.46 | 74.84 |
| G322288322 | 100 | 31.5 | 3' | 5x0.25 | 9.5 | 0,2 | 6.5 | -0.07 | 1 | 100.09 | 100.18 | ARB2 VIS | 98.62 | 95.34 |
| G322269322 | 120 | 31.5 | 3' | 5x0.25 | 9.5 | 0,2 | 7 | -0.07 | 0.8 | 119.91 | 120.01 | ARB2 VIS | 118.09 | 115.6 |
| G322239322 | 140 | 31.5 | 3' | 5x0.25 | 8 | 0,2 | 5.9 | -0.07 | 0.7 | 140.07 | 140.16 | ARB2 VIS | 138.74 | 136.2 |
| G322227322 | 150 | 31.5 | 3' | 5x0.25 | 8.6 | 0,1 | 6.6 | -0.07 | 0.7 | 150.03 | 150.09 | ARB2 VIS | 148.55 | 145.85 |
| G322270322 | 160 | 31.5 | 3' | 5x0.25 | 8.6 | 0,2 | 6.7 | -0.07 | 0.6 | 160 | 160.08 | ARB2 VIS | 158.47 | 155.95 |
| G322342322 | 180 | 31.5 | 3' | 3x0.16 | 9 | 0,2 | 7.1 | 0.63 | 180.1 | 180.19 | ARB2 VIS | 175.84 | ||
| G322271322 | 200 | 31.5 | 3' | 5x0.25 | 7 | 0,2 | 5.5 | -0.07 | 0.4 | 200.41 | 200.54 | ARB2 VIS | 198.16 | 197.21 |
| G322272322 | 250 | 31.5 | 3' | 5x0.25 | 7 | 0,2 | 5.8 | -0.07 | 0.4 | 250.45 | 250.58 | ARB2 VIS | 249.05 | 247.42 |
| G322273322 | 300 | 31.5 | 3' | 5x0.25 | 7 | 0,2 | 6 | -0.07 | 0.3 | 300.23 | 300.38 | ARB2 VIS | 298.83 | 297.19 |
| G322275322 | 400 | 31.5 | 3' | 5x0.25 | 7 | 0,2 | 6.3 | -0.07 | 0.2 | 400.08 | 400.27 | ARB2 VIS | 398.68 | 397.05 |
製品一覧
正のアクロマートレンズ 可視光用（マウントなし ・ ⌀ 3～31.5 mm）の一覧表です。 2行目のフィールドに頭の文字を入力すると絞り込めます（例 ： 「1」と入力すると、1から始まるデータの行のみが表示されます）。
| 型番 | 製品名 | レンズ外径 ［mm］ | f' ［mm］ | 価格（税別） |
|---|---|---|---|---|
| G322218000 | Achr. VIS ARB2; D=3; F=4 | 3 | 4 | ¥19,700 |
| G322219000 | Achr. VIS ARB2; D=3; F=5 | 3 | 5 | ¥14,300 |
| G322250000 | Achr. VIS ARB2; D=3; F=6 | 6 | 6 | ¥23,000 |
| G322220000 | Achr. VIS ARB2; D=6; F=8 | 6 | 8 | ¥28,000 |
| G322206000 | Achr. VIS ARB2; D=6; F=10 | 6 | 10 | ¥19,300 |
| G322222000 | Achr. VIS ARB2; D=6; F=13 | 6 | 13 | ¥22,400 |
| G322223000 | Achr. VIS ARB2; D=6; F=18 | 6 | 18 | ¥23,000 |
| G322207000 | Achr. VIS ARB2; D=8; F=16 | 8 | 16 | ¥21,000 |
| G322356322 | Achr. VIS ARB2; D=8; F=25 | 8 | 25 | ¥21,000 |
| G322357322 | Achr. VIS ARB2; D=8; F=30 | 8 | 30 | ¥21,000 |
| G322358322 | Achr. VIS ARB2; D=8; F=35 | 8 | 35 | ¥24,500 |
| G322359322 | Achr. VIS ARB2; D=8; F=40 | 8 | 40 | ¥20,500 |
| G322362322 | Achr. VIS ARB2; D=8; F=60 | 8 | 60 | ¥24,700 |
| G322363322 | Achr. VIS ARB2; D=8; F=80 | 8 | 80 | ¥23,200 |
| G322364322 | Achr. VIS ARB2; D=8; F=100 | 8 | 100 | ¥23,200 |
| G322367322 | Achr. VIS ARB2; D=8; F=200 | 8 | 200 | ¥29,300 |
| G322368322 | Achr. VIS ARB2; D=8; F=300 | 8 | 300 | ¥31,600 |
| G322201000 | Achr. VIS ARB2; D=10; F=20 | 10 | 20 | ¥19,900 |
| G322284000 | Achr. VIS ARB2; D=12.5; F=25 | 12.5 | 25 | ¥21,000 |
| G322285000 | Achr. VIS ARB2; D=12.5; F=30 | 12.5 | 30 | ¥21,200 |
| G322286000 | Achr. VIS ARB2; D=12.5; F=35 | 12.5 | 35 | ¥21,200 |
| G322337000 | Achr. VIS ARB2; D=12.5; F=40 | 12.5 | 40 | ¥19,700 |
| G322338000 | Achr. VIS ARB2; D=12.5; F=45 | 12.5 | 45 | ¥21,200 |
| G322339000 | Achr. VIS ARB2; D=12.5; F=50 | 12.5 | 50 | ¥21,200 |
| G322341000 | Achr. VIS ARB2; D=12.5; F=60 | 12.5 | 60 | ¥21,000 |
| G322343000 | Achr. VIS ARB2; D=12.5; F=80 | 12.5 | 80 | ¥21,200 |
| G322345000 | Achr. VIS ARB2; D=12.5; F=100 | 12.5 | 100 | ¥21,200 |
| G322320322 | Achr. VIS ARB2; D=12.5; F=120 | 12.5 | 120 | ¥31,800 |
| G322325322 | Achr. VIS ARB2; D=12.5; F=150 | 12.5 | 150 | ¥35,100 |
| G322327322 | Achr. VIS ARB2; D=12.5; F=200 | 12.5 | 200 | ¥39,300 |
| G322209000 | Achr. VIS ARB2; D=18; F=40 | 18 | 40 | ¥22,600 |
| G322265000 | Achr. VIS ARB2; D=18; F=50 | 18 | 50 | ¥23,200 |
| G322266000 | Achr. VIS ARB2; D=18; F=60 | 18 | 60 | ¥21,600 |
| G322210000 | Achr. VIS ARB2; D=18; F=80 | 18 | 80 | ¥22,800 |
| G322236000 | Achr. VIS ARB2; D=18; F=100 | 18 | 100 | ¥22,800 |
| G322331322 | Achr. VIS ARB2; D=18; F=150 | 18 | 150 | ¥23,200 |
| G322332322 | Achr. VIS ARB2; D=18; F=200 | 18 | 200 | ¥40,900 |
| G322321000 | Achr. VIS ARB2; D=22.4; F=50 | 22.4 | 50 | ¥24,700 |
| G322322000 | Achr. VIS ARB2; D=22.4; F=60 | 22.4 | 60 | ¥24,500 |
| G322323000 | Achr. VIS ARB2; D=22.4; F=80 | 22.4 | 80 | ¥24,500 |
| G322324000 | Achr. VIS ARB2; D=22.4; F=100 | 22.4 | 100 | ¥24,700 |
| G322326000 | Achr. VIS ARB2; D=22.4; F=140 | 22.4 | 140 | ¥24,700 |
| G322333322 | Achr. VIS ARB2; D=22.4; F=160 | 22.4 | 160 | ¥30,900 |
| G322328000 | Achr. VIS ARB2; D=22.4; F=200 | 22.4 | 200 | ¥24,700 |
| G322329000 | Achr. VIS ARB2; D=22.4; F=500 | 22.4 | 500 | ¥21,600 |
| G322306322 | Achr. VIS ARB2; D=25.4; F=60 | 25.4 | 60 | ¥22,000 |
| G322307322 | Achr. VIS ARB2; D=25.4; F=80 | 25.4 | 80 | ¥22,000 |
| G322308322 | Achr. VIS ARB2; D=25.4; F=100 | 25.4 | 100 | ¥22,000 |
| G322309322 | Achr. VIS ARB2; D=25.4; F=120 | 25.4 | 120 | ¥22,000 |
| G322351000 | Achr. VIS ARB2; D=25.4; F=140 | 25.4 | 140 | ¥22,000 |
| G322352000 | Achr. VIS ARB2; D=25.4; F=160 | 25.4 | 160 | ¥22,000 |
| G322353000 | Achr. VIS ARB2; D=25.4; F=200 | 25.4 | 200 | ¥22,000 |
| G322336322 | Achr. VIS ARB2; D=25.4; F=300 | 25.4 | 300 | ¥22,000 |
| G322340322 | Achr. VIS ARB2; D=25.4; F=400 | 25.4 | 400 | ¥22,000 |
| G322355000 | Achr. VIS ARB2; D=25.4; F=500 | 25.4 | 500 | ¥22,000 |
| G322287322 | Achr. VIS ARB2; D=31.5; F=80 | 31.5 | 80 | ¥27,600 |
| G322288322 | Achr. VIS ARB2; D=31.5; F=100 | 31.5 | 100 | ¥27,400 |
| G322269322 | Achr. VIS ARB2; D=31.5; F=120 | 31.5 | 120 | ¥27,600 |
| G322239322 | Achr. VIS ARB2; D=31.5; F=140 | 31.5 | 140 | ¥27,400 |
| G322227322 | Achr. VIS ARB2; D=31.5; F=150 | 31.5 | 150 | ¥27,600 |
| G322270322 | Achr. VIS ARB2; D=31.5; F=160 | 31.5 | 160 | ¥27,600 |
| G322342322 | Achr. VIS ARB2; D=31.5; F=180 | 31.5 | 180 | ¥27,600 |
| G322271322 | Achr. VIS ARB2; D=31.5; F=200 | 31.5 | 200 | ¥27,600 |
| G322272322 | Achr. VIS ARB2; D=31.5; F=250 | 31.5 | 250 | ¥27,600 |
| G322273322 | Achr. VIS ARB2; D=31.5; F=300 | 31.5 | 300 | ¥27,600 |
| G322275322 | Achr. VIS ARB2; D=31.5; F=400 | 31.5 | 400 | ¥37,800 |
-
※表示価格に消費税は含まれておりません。
-
※為替レートの変動により予告なく価格を変更する場合があります。
-
※ご注文の合計金額が 20,000円（税別）に満たない場合は、送料 1,000円（税別）を別途請求します。

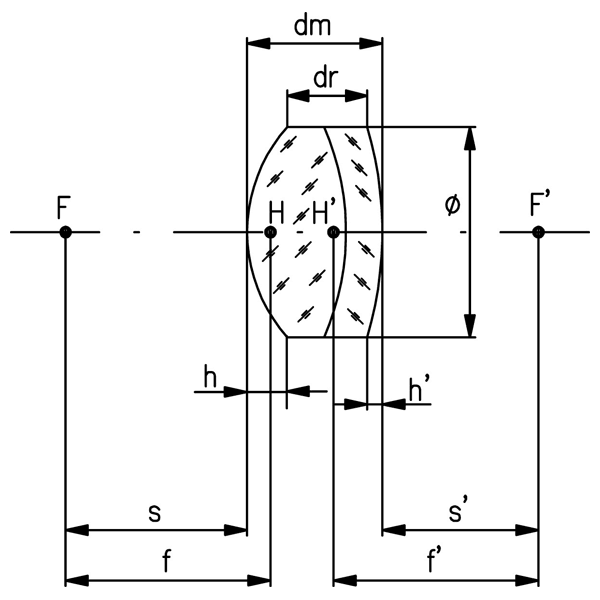

図面
f: focal length
s: object distance
s': image distance
⌀: lens diameter
dm: center thickness
dr: edge thickness
h: primary vertex (h=dm-dr-h')
h': sagittal height secondary vertex
F, F': focal points
H, H': principal points
Tolerances:
Focal length f: ±1%
Image distance s': ±1%
コーディング
この製品に関するお問合せフォーム
フォームが表示されるまでしばらくお待ちください。
しばらくお待ちいただいてもフォームが表示されない場合、恐れ入りますが こちら までお問合せください。
