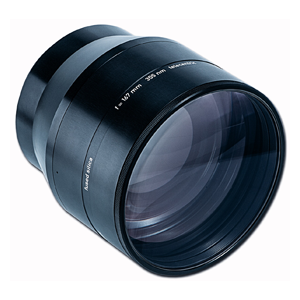

F-Theta-Ronar Lenses 340-360 nm
- Fused-silica designs
- Telecentric versions available
- Focal lengths ranging from 70 mm to 255 mm, tolerance ±1%
- Screw thread M85x1
- Transmission ≥ 96 % with good performance in VIS-range
- Laser-damage threshold coating up to 4 J/cm2 at 355 nm, 6 ns, 100 Hz
- Laser-damage threshold coating up to 0.4 J/cm2 at 343 nm, 200 fs, 1 kHz
- Includes interchangeable fused- silica protective glasses
All lenses can be used with enlarged beam diameters and different mirror distances. Accordingly the scan fields and spot size diameters will be changed. Please feel free to send us your request.
仕様

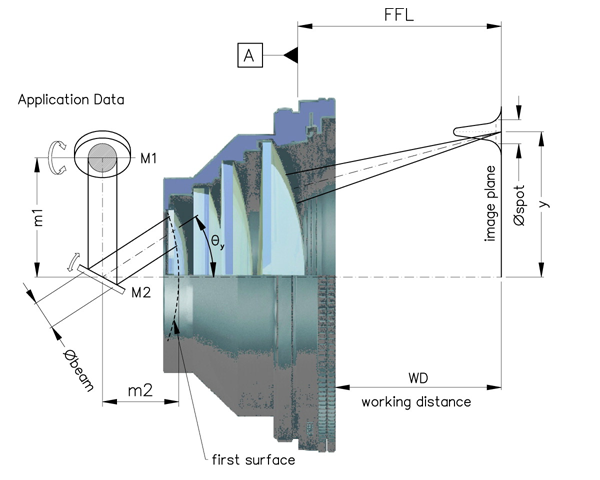

| Part No. | Fused silica | Protective glass | Nominal focal length (mm) | Effective focal length EFL (mm) | Working distance WD (mm) | Flange focal length (distance from mechanical flange to focus plane) FFL (mm) | Maximum scan field (mm2) | Scan angle ± thetax,y max. (°) | Beam diameter truncated at 1/e2 ⌀beam (mm) | Spot diameter at 1/e2 ⌀spot (µm) | Mirror distances m1/m2 (mm) | Screw thread or lens diameter | Max. telecentric error (°) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4401-576-000-21 | x | PG4 | 70 telecentric | 73.9 | 92.5 | 144.3 | 28 x 28 | ±11.3 | 10 | 5 | 13/19 | M85x1 | 0.8 |
| 4401-509-000-21 | x | PG11 | 100 telecentric | 104.1 | 136.7 | 215.1 | 46 x 46 | ±12.7 | 10 | 7 | 13/29 | M85x1 | 0.5 |
| 4401-399-000-21 | x | PG4 | 160 | 161 | 197.4 | 208.3 | 98 x 98 | ±17.7 | 7 | 15 | 9.3/16 | M85x1 | 12.7 |
| 4401-511-000-21 | x | PG15 | 167 telecentric | 166.9 | 255 | 374.1 | 65 x 65 | ±11. 3 | 10 | 13 | 13/48 | M85x1 | 0.2 |
| 4401-481-000-21 | x | PG11 | 255 | 254.7 | 318.1 | 365.7 | 170 x 170 | ±19.3 | 10 | 17 | 13/30 | M85x1 | 13.6 |
製品一覧
| 型番 | 製品名 | 価格 |
|---|---|---|
| 4401-576-000-21 | F-Theta-Ronar telec/fused silica 70 mm/340-360 nm | お問合せ |
| 4401-509-000-21 | F-Theta-Ronar telec/fused silica 100 mm/355 nm | お問合せ |
| 4401-399-000-21 | F-Theta Ronar fused silica 160 mm/340-360 nm | お問合せ |
| 4401-511-000-21 | F-Theta-Ronar telec/fused silica 167 mm/340-360 nm | お問合せ |
| 4401-481-000-21 | F-Theta-Ronar fused silica 255 mm/340-360 nm | お問合せ |
-
※表示価格に消費税は含まれておりません。
-
※為替レートの変動により予告なく価格を変更する場合があります。
-
※ご注文の合計金額が 20,000円（税別）に満たない場合は、送料 1,000円（税別）を別途請求します。
技術資料
- Laser Material Processing Brochure
- Product sheet F-Theta-Ronar Fused Silica Lenses
- Focal length 100 mm, 4401-576-000-21, Lens data sheet (PDF)
- Focal length 100 mm, 4401-576-000-21, 3D CAD Data (Parasolid)
- Focal length 100 mm, 4401-576-000-21, 3D CAD Data (STEP214)
- Focal length 100 mm, 4401-509-000-21, Lens data sheet (PDF)
- Focal length 100 mm, 4401-509-000-21, 3D CAD Data (Parasolid)
- Focal length 100 mm, 4401-509-000-21, 3D CAD Data (STEP214)
- Focal length 160 mm, 4401-399-000-21, Lens data sheet (PDF)
- Focal length 160 mm, 4401-399-000-21, 3D CAD Data (STEP214)
- Focal length 160 mm, 4401-399-000-21, 3D CAD Data (Parasolid)
- Focal length 167 mm, 4401-511-000-21, Lens data sheet (PDF)
- Focal length 167 mm, 4401-511-000-21, CAD Data (Parasolid)
- Focal length 167 mm, 4401-511-000-21, CAD Data (STEP214)
- Focal length 254 mm, 4401-481-000-21, Lens data sheet (PDF)
- Focal length 254 mm, 4401-481-000-21, 3D CAD Data (Parasolid)
- Focal length 254 mm, 4401-481-000-21, 3D CAD Data (STEP214)
