両凸レンズ（マウント付き ・ 石英ガラス）
仕様
| Part No. | Optic Size (mm) | Length (mm) | Mount | Focal Length (mm) | Material | Optic Centering Accuracy | Optic Center Thickness dm (mm) | Optic Edge Thickness (mm) | ⌀ Tolerance (mm) | Clear aperture (mm) | f'1064 nm (mm) | Outer Diameter (mm) | Radius of Curvature 1 (mm) | Radius of Curvature 2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G052212000 | ⌀6 | 8 | n | 5 | Fused Silica | 4' | 3 | 1 | -0.075 | 5 | 6.14 | 16 | 5.012 | -5.012 |
| G052213000 | ⌀10 | 8 | n | 10 | Fused Silica | 4' | 4 | 1.2 | -0.09 | 9 | 11.39 | 16 | 9.578 | -9.578 |
| G052214000 | ⌀12.5 | 8 | n | 12.5 | Fused Silica | 4' | 4.7 | 1 | -0.13 | 11.5 | 13.7 | 16 | 11.548 | -11.548 |
| G052215000 | ⌀12.7 | 8 | n | 16 | Fused Silica | 4' | 3.8 | 1.2 | -0.13 | 11.5 | 18.17 | 16 | 15.735 | -15.735 |
| G063316000 | ⌀18 | 10 | m | 20 | Fused Silica | 4' | 5.8 | 1.4 | -0.13 | 17 | 22.91 | 25 | 19.668 | -19.668 |
| G063030000 | ⌀22.4 | 10 | m | 25 | Fused Silica | 4' | 7 | 1.6 | -0.13 | 21.4 | 28.4 | 25 | 24.406 | -24.406 |
| G063317000 | ⌀22.4 | 10 | m | 30 | Fused Silica | 4' | 6 | 1.5 | -0.13 | 21.4 | 33.32 | 25 | 29.007 | -29.007 |
| G063318000 | ⌀22.4 | 10 | m | 40 | Fused Silica | 4' | 4.9 | 1.7 | -0.13 | 21.4 | 44.8 | 25 | 39.525 | -39.525 |
| G063319000 | ⌀22.4 | 10 | m | 50 | Fused Silica | 4' | 4.2 | 1.6 | -0.13 | 21.4 | 55.66 | 25 | 49.403 | -49.403 |
| G063320000 | ⌀22.4 | 10 | m | 60 | Fused Silica | 4' | 3.7 | 1.6 | -0.13 | 21.4 | 67.82 | 25 | 60.43 | -60.43 |
| G063031000 | ⌀22.4 | 10 | m | 80 | Fused Silica | 4' | 3.3 | 1.7 | -0.13 | 21.4 | 87.62 | 25 | 78.298 | -78.298 |
| G063321000 | ⌀22.4 | 10 | m | 100 | Fused Silica | 4' | 2.9 | 1.6 | -0.13 | 21.4 | 111.67 | 25 | 100 | -100 |
| G063322000 | ⌀22.4 | 10 | m | 150 | Fused Silica | 4' | 2.4 | 1.6 | -0.13 | 21.4 | 166.75 | 25 | 149.62 | -149.62 |
| G063323000 | ⌀22.4 | 10 | m | 200 | Fused Silica | 4' | 2.2 | 1.6 | -0.13 | 21.4 | 222.2 | 25 | 199.53 | -199.53 |
| G063161000 | ⌀31.5 | 16 | m | 30 | Fused Silica | 3' | 11.5 | 2 | -0.07 | 30 | 33.8 | 35 | 28.49 | -28.49 |
| G063162000 | ⌀31.5 | 16 | m | 40 | Fused Silica | 3' | 8.6 | 2 | -0.07 | 30 | 45.17 | 35 | 39.243 | -39.243 |
| G063163000 | ⌀31.5 | 16 | m | 50 | Fused Silica | 3' | 7.3 | 2.2 | -0.07 | 30 | 56.44 | 35 | 49.581 | -49.581 |
| G063164000 | ⌀31.5 | 16 | m | 60 | Fused Silica | 3' | 6.2 | 2 | -0.07 | 30 | 67.81 | 35 | 59.996 | -59.996 |
| G063165000 | ⌀31.5 | 16 | m | 80 | Fused Silica | 3' | 5.1 | 2 | -0.07 | 30 | 90.5 | 35 | 80.583 | -80.583 |
| G063166000 | ⌀31.5 | 16 | m | 100 | Fused Silica | 3' | 4.5 | 2 | -0.07 | 30 | 113.2 | 35 | 101.092 | -101.092 |
| G063168000 | ⌀31.5 | 16 | m | 120 | Fused Silica | 3' | 4.1 | 2.1 | -0.07 | 30 | 135.76 | 35 | 121.446 | -121.446 |
製品一覧
両凸レンズ（マウント付き ・ 石英ガラス）の一覧表です。 2行目のフィールドに頭の文字を入力すると絞り込めます（例 ： 「1」と入力すると、1から始まるデータの行のみが表示されます）。
| 型番 | 製品名 | コーティングなし 型番末尾 xxx=000 |
ARB2-VIS 型番末尾 xxx=322 |
ARB2-NIR 型番末尾 xxx=525 |
ARHS-YAG 型番末尾 xxx=329 |
RAL(AL) 型番末尾 xxx=331 |
RAGV 型番末尾 xxx=400 |
|---|---|---|---|---|---|---|---|
| G052212xxx | Biconvex lens; Fused silica; D=6; F=5; mounted | ¥24,100 | ¥27,000 | ¥34,100 | ¥27,000 | ¥26,200 | ¥26,200 |
| G052213xxx | Biconvex lens; Fused silica; D=10; F=10; mounted | ¥25,500 | ¥28,400 | ¥35,500 | ¥28,400 | ¥27,600 | ¥27,600 |
| G052214xxx | Biconvex lens; Fused silica; D=12.5; F=12.5; mounted | ¥25,100 | ¥28,000 | ¥35,100 | ¥28,000 | ¥27,200 | ¥27,200 |
| G052215xxx | Biconvex lens; Fused silica; D=12.5; F=16; mounted | ¥25,100 | ¥28,000 | ¥35,100 | ¥28,000 | ¥27,200 | ¥27,200 |
| G063316xxx | Biconvex lens; Fused silica; D=18; F=20; mounted | ¥25,500 | ¥28,400 | ¥35,500 | ¥28,400 | ¥27,600 | ¥27,600 |
| G063030xxx | Biconvex lens; Fused silica; D=22.4; F=25; mounted | ¥30,100 | ¥33,400 | ¥41,300 | ¥33,400 | ¥32,600 | ¥32,600 |
| G063317xxx | Biconvex lens; Fused silica; D=22.4; F=30; mounted | ¥30,500 | ¥33,900 | ¥41,800 | ¥33,900 | ¥33,000 | ¥33,000 |
| G063318xxx | Biconvex lens; Fused silica; D=22.4; F=40; mounted | ¥30,500 | ¥33,900 | ¥41,800 | ¥33,900 | ¥33,000 | ¥33,000 |
| G063319xxx | Biconvex lens; Fused silica; D=22.4; F=50; mounted | ¥30,500 | ¥33,900 | ¥41,800 | ¥33,900 | ¥33,000 | ¥33,000 |
| G063320xxx | Biconvex lens; Fused silica; D=22.4; F=60; mounted | ¥30,500 | ¥33,900 | ¥41,800 | ¥33,900 | ¥33,000 | ¥33,000 |
| G063031xxx | Biconvex lens; Fused silica; D=22.4; F=80; mounted | ¥30,900 | ¥34,300 | ¥42,200 | ¥34,300 | ¥33,400 | ¥33,400 |
| G063321xxx | Biconvex lens; Fused silica; D=22.4; F=100; mounted | ¥30,500 | ¥33,900 | ¥41,800 | ¥33,900 | ¥33,000 | ¥33,000 |
| G063322xxx | Biconvex lens; Fused silica; D=22.4; F=150; mounted | ¥30,500 | ¥33,900 | ¥41,800 | ¥33,900 | ¥33,000 | ¥33,000 |
| G063323xxx | Biconvex lens; Fused silica; D=22.4; F=200; mounted | ¥30,500 | ¥33,900 | ¥41,800 | ¥33,900 | ¥33,000 | ¥33,000 |
| G063161xxx | Biconvex lens; Fused silica; D=31.5; F=30; mounted | ¥38,400 | ¥42,600 | ¥53,200 | ¥42,600 | ¥41,300 | ¥41,300 |
| G063162xxx | Biconvex lens; Fused silica; D=31.5; F=40; mounted | ¥38,400 | ¥42,600 | ¥53,200 | ¥42,600 | ¥41,300 | ¥41,300 |
| G063163xxx | Biconvex lens; Fused silica; D=31.5; F=50; mounted | ¥38,400 | ¥42,600 | ¥53,200 | ¥42,600 | ¥41,300 | ¥41,300 |
| G063164xxx | Biconvex lens; Fused silica; D=31.5; F=60; mounted | ¥38,400 | ¥42,600 | ¥53,200 | ¥42,600 | ¥41,300 | ¥41,300 |
| G063165xxx | Biconvex lens; Fused silica; D=31.5; F=80; mounted | ¥37,800 | ¥42,000 | ¥52,600 | ¥42,000 | ¥40,700 | ¥40,700 |
| G063166xxx | Biconvex lens; Fused silica; D=31.5; F=100; mounted | ¥38,400 | ¥42,600 | ¥53,200 | ¥42,600 | ¥41,300 | ¥41,300 |
| G063168xxx | Biconvex lens; Fused silica; D=31.5; F=120; mounted | ¥38,400 | ¥42,600 | ¥53,200 | ¥42,600 | ¥41,300 | ¥41,300 |
-
※表示価格に消費税は含まれておりません。
-
※為替レートの変動により予告なく価格を変更する場合があります。
-
※ご注文の合計金額が 20,000円（税別）に満たない場合は、送料 1,000円（税別）を別途請求します。

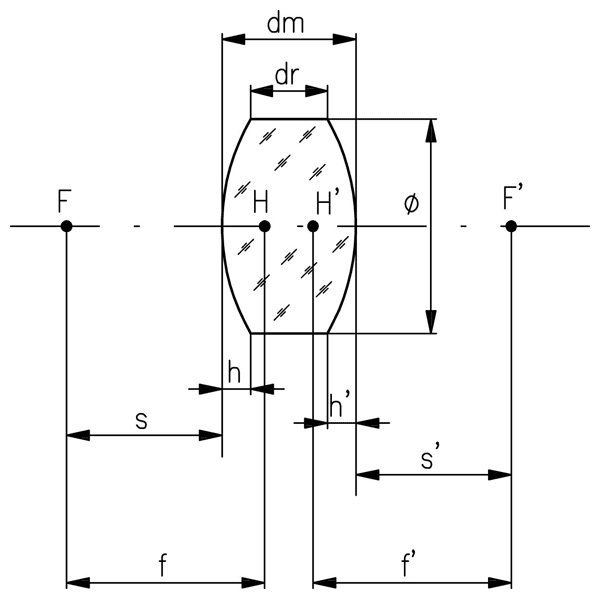

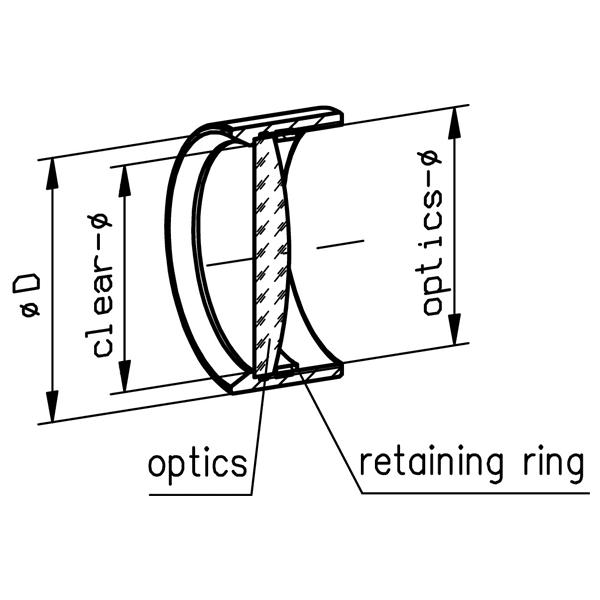

図面
f: focal length (object side)
f': focal length (image side)
s: object distance
s': image distance
Ø: lens diameter
dm: center thickness
dr: edge thickness
h, h': sagital height primary/secondary vertex
h, h' = (dm-dr) / 2 for symmetrical biconvex lenses
F, F': focal points
H, H': principal points
Tolerances:
Focal length f': ±2%
Image distance s': ±2%

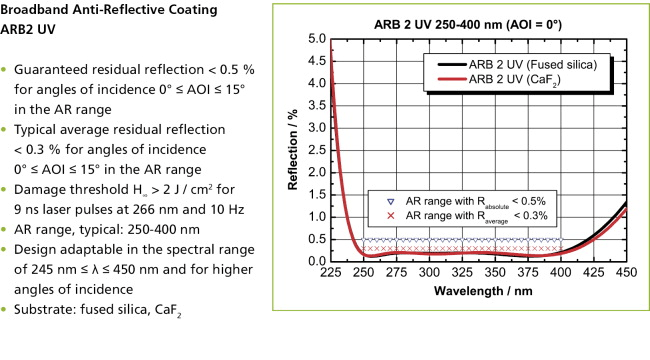

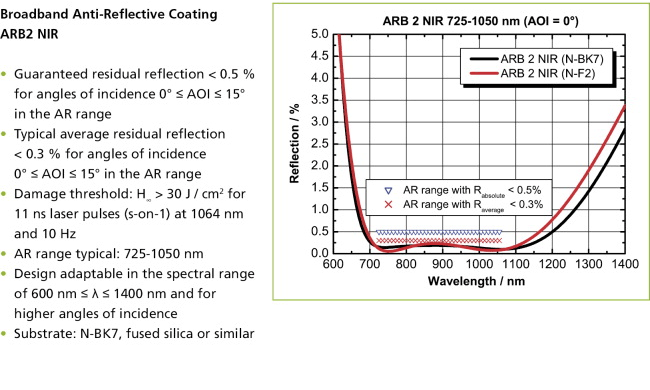

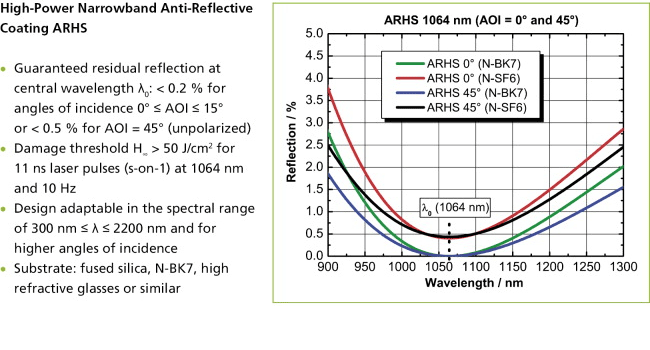

コーティング
