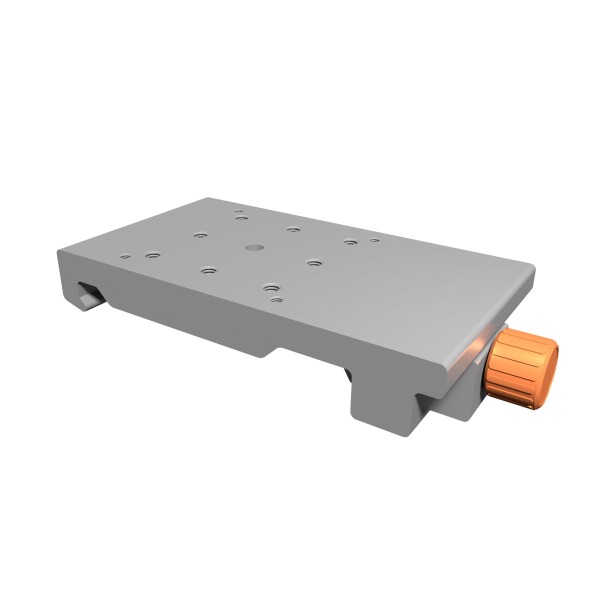

キャリア X95
特長
- バネクランプ機構とテフロンコート表面がスムーズな移動を実現します。
- 取り扱い簡単
- ポストや同様なデバイスに対して⌀6.6mmの中心穴があります。

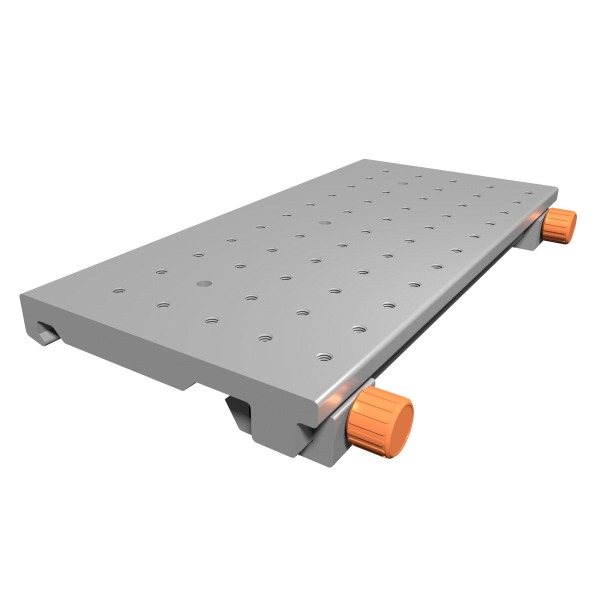

- 上面にM６ネジ穴（50mm穴パターン）
- 底面のマウントのためM４ネジ穴用のザクリ穴（50mm穴パターン）
- マウントプレートMP80やマウントベース用にM４マウント穴（63mm穴パターン）
- アンビル/クランプのネジロッキングメカニズム

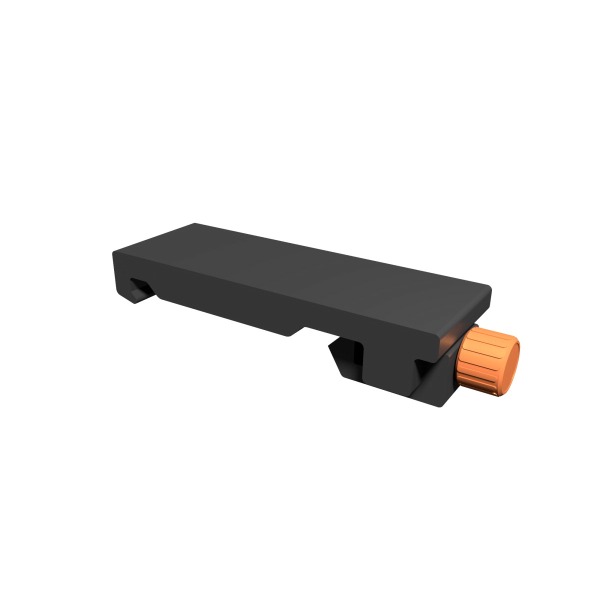

- 2種類の表面処理 黒色アルマイト処理 あり/なし
- マウント穴 あり/なしの2パターン
仕様
| Part No. | Width (mm) | Anodized | With hole-pattern |
|---|---|---|---|
| G026412000 | 30 | colorless | no |
| G026413000 | 50 | colorless | no |
| G026414000 | 80 | colorless | no |
| G026416000 | 120 | colorless | no |
| G026417000 | 200 | colorless | no |
| G026418000 | 300 | colorless | no |
| G026420000 | 30 | colorless | yes |
| G026421000 | 50 | colorless | yes |
| G026422000 | 80 | colorless | yes |
| G026423000 | 120 | colorless | yes |
| G026428000 | 200 | colorless | yes |
| G026429000 | 300 | colorless | yes |
| G026512000 | 30 | black | no |
| G026513000 | 50 | black | no |
| G026514000 | 80 | black | no |
| G026516000 | 120 | black | no |
| G026517000 | 200 | black | no |
| G026518000 | 300 | black | no |
| G026519000 | 30 | black | yes |
| G026521000 | 50 | black | yes |
| G026522000 | 80 | black | yes |
| G026523000 | 120 | black | yes |
| G026528000 | 200 | black | yes |
| G026529000 | 300 | black | yes |
ラインアップ
| 型番 | 商品名 | 価格 |
|---|---|---|
| G026412000 | Carrier X 95-30, col.l., w/o hole pat. | ¥14,300 |
| G026413000 | Carrier X 95-50, col.l., w/o hole pat. | ¥18,300 |
| G026414000 | Carrier X 95-80, col.l., w/o hole pat. | ¥21,500 |
| G026416000 | Carrier X 95-120, col.l., w/o hole pat. | ¥25,000 |
| G026417000 | Carrier X 95-200, col.l., w/o hole pat. | ¥40,700 |
| G026418000 | Carrier X 95-300, col.l., w/o hole pat. | ¥49,700 |
| G026420000 | Carrier X 95-30, col.l., w/ hole pat. | ¥15,900 |
| G026421000 | Carrier X 95-50, col.l., w/ hole pat. | ¥18,500 |
| G026422000 | Carrier X 95-80, col.l., w/ hole pat. | ¥23,500 |
| G026423000 | Carrier X 95-120, col.l., w/ hole pat. | ¥25,300 |
| G026428000 | Carrier X 95-200, col.l., w/ hole pat. | ¥43,900 |
| G026429000 | Carrier X 95-300, col.l., w/ hole pat. | ¥53,000 |
| G026512000 | Carrier X 95-30, black, w/o hole pat. | ¥14,300 |
| G026513000 | Carrier X 95-50, black, w/o hole pat. | ¥18,500 |
| G026514000 | Carrier X 95-80, black, w/o hole pat. | ¥23,500 |
| G026516000 | Carrier X 95-120, black, w/o hole pat. | ¥29,500 |
| G026517000 | Carrier X 95-200, black, w/o hole pat. | ¥40,700 |
| G026518000 | Carrier X 95-300, black, w/o hole pat. | ¥49,700 |
| G026519000 | Carrier X 95-30, black, w/ hole pattern | ¥15,900 |
| G026521000 | Carrier X 95-50, black, w/ hole pattern | ¥19,900 |
| G026522000 | Carrier X 95-80, black, w/ hole pattern | ¥25,000 |
| G026523000 | Carrier X 95-120, black, w/ hole pattern | ¥32,200 |
| G026528000 | Carrier X 95-200, black, w/ hole pattern | ¥43,900 |
| G026529000 | Carrier X 95-300, black, w/ hole pattern | ¥58,400 |
-
※表示価格に消費税は含まれておりません。
-
※為替レートの変動により予告なく価格を変更する場合があります。
-
※ご注文の合計金額が 20,000円（税別）に満たない場合は、送料として1,000円を別途ご請求します。
技術資料
- DXF File Carrier 50 x 95 - 30 mm
- Carriers 50 X 95 (Width B 30 mm), without hole-pattern, colorless anodized / 3D
- 3D PDF file for G026412000
- Carriers 50 X 95 (Width B 50 mm), without hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 50 mm), without hole-pattern, colorless anodized / 3D
- 3D PDF file for G026431000
- Carriers 50 X 95 (Width B 80 mm), without hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 80 mm), without hole-pattern, colorless anodized / 3D
- 3D PDF file for G026414000
- Carriers 50 X 95 (Width B 120 mm), without hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 120 mm), without hole-pattern, colorless anodized / 3D
- 3D PDF file for G026416000
- Carriers 50 X 95 (Width B 200 mm), without hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 200 mm), without hole-pattern, colorless anodized / 3D
- 3D PDF file for G026417000
- Carriers 50 X 95 (Width B 300 mm), without hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 300mm), without hole-pattern, colorless anodized / 3D
- 3D PDF file for G026418000
- Carriers 50 X 95 (Width B 30 mm), with hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 30 mm), with hole-pattern, colorless anodized / 3D
- 3D PDF file for G026420000
- Carriers 50 X 95 (Width B 50 mm), with hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 50 mm), with hole-pattern, colorless anodized / 3D
- 3D PDF file for G026421000
- Carriers 50 X 95 (Width B 80 mm), with hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 80 mm), with hole-pattern, colorless anodized / 3D
- 3D PDF file for G026422000
- Carriers 50 X 95 (Width B 120 mm), with hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 120 mm), with hole-pattern, colorless anodized / 3D
- 3D PDF file for G026423000
- Carriers 50 X 95 (Width B 200 mm), with hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 200 mm), with hole-pattern, colorless anodized / 3D
- 3D PDF file for G026428000
- Carriers 50 X 95 (Width B 300 mm), with hole-pattern, colorless anodized / 2D
- Carriers 50 X 95 (Width B 300 mm), with hole-pattern, colorless anodized / 3D
- 3D PDF file for G026429000
- Carriers 50 X 95 (Width B 30 mm), without hole-pattern, black anodized / 2D
- Carriers 50 X 95 (Width B 30 mm), without hole-pattern, black anodized / 3D
- 3D PDF file for G026512000
- Carriers 50 X 95 (Width B 30 mm), with hole-pattern, black anodized / 2D
- Carriers 50 X 95 (Width B 30 mm), with hole-pattern, black anodized / 3D
- 3D PDF file for G026519000

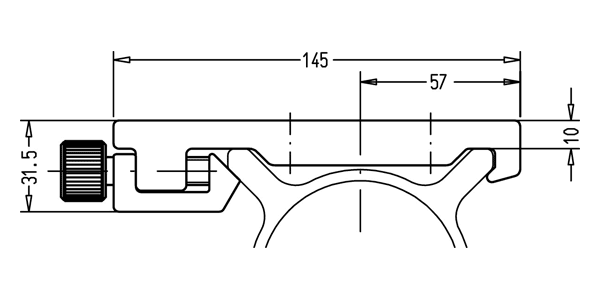

図面
